As solar energy systems become the standard for homes and commercial buildings, the demand for reliable power integration has skyrocketed. If you are building an off-grid or hybrid solar system, your automatic transfer switch (ATS) is the beating heart of your power management—seamlessly shifting loads between your solar inverter, battery bank, and the utility grid.
However, many solar installers and DIY enthusiasts face a critical bottleneck: sizing the ATS correctly. What size transfer switch do you need for a solar inverter? And more importantly, how do you fit a bulky transfer switch into a compact PV combiner box? In this comprehensive guide, we will walk you through the exact formulas for sizing an ATS for a solar system and reveal the best compact ATS solutions for your next installation.
Step 1: Calculate Your Solar Inverter’s Maximum Output
The golden rule of sizing an ATS is that it must be able to handle the maximum continuous load of your power sources. In a solar setup, this means looking at the maximum AC output of your solar inverter.
To find your required amperage, use the basic Watt’s Law formula: Amps (A) = Watts (W) / Volts (V)
For example, if you are installing a standard 10kW (10,000 Watts) solar inverter on a 230V single-phase electrical system:
- 10,000W / 230V = 43.47 Amps
Your inverter will output a maximum of roughly 43.5 Amps of continuous current. But wait—you cannot just buy a 45A or 50A transfer switch. You need a safety margin.
Step 2: Apply the 125% Safety Margin Rule (NEC Standard)
According to the National Electrical Code (NEC) and global electrical safety standards, your transfer switch and breakers must be sized for at least 125% of the continuous load.
Running an ATS at its absolute maximum limit for hours (especially during peak solar generation) can cause overheating, voltage drops, and even dangerous contact welding inside the switch.
Let’s apply the 125% rule to our previous example:
- 43.47 Amps × 1.25 = 54.33 Amps
The Result: You need an ATS rated for at least 55 Amps. Since automatic transfer switches come in standard industry sizes (e.g., 63A, 100A, 125A), you would round up and select a 63A automatic transfer switch for this 10kW system.
Step 3: Match the Poles to Your System (2P vs. 4P)
Once you have the correct amperage, you must match the poles (phases) to your solar grid:
- 2P (2-Pole) ATS: Essential for standard single-phase solar systems (common in residential off-grid setups). It switches the Live (L) and Neutral (N) wires.
- 4P (4-Pole) ATS: Required for three-phase commercial PV systems. It safely switches all three Live phases (L1, L2, L3) alongside the Neutral wire.
The Overlooked Factor: Physical Sizing and DIN Rail Mounting

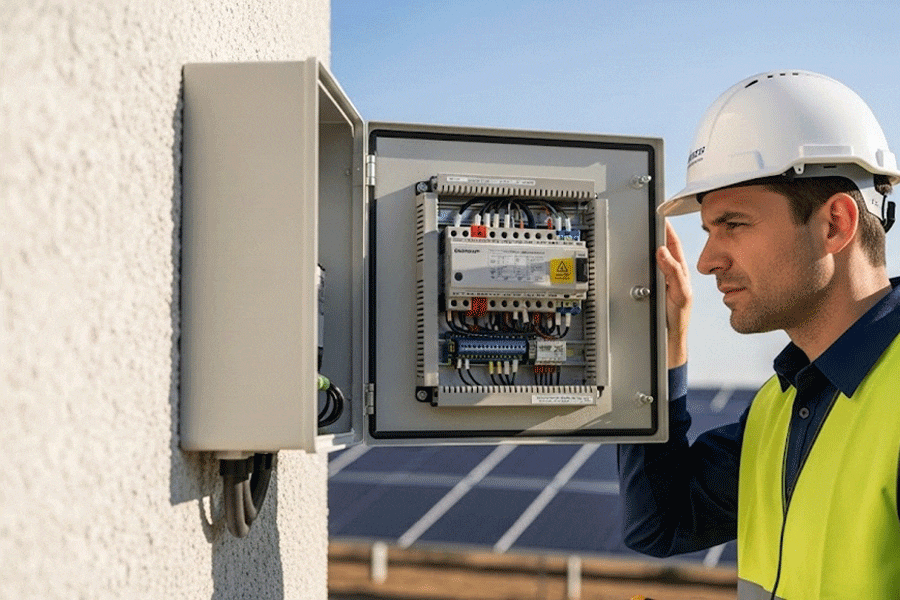

Here is the biggest headache solar contractors face: You calculated the perfect 63A transfer switch, but when it arrives, it is a massive, heavy metal box that won’t fit in your PV combiner box or distribution panel.
Traditional motor-driven transfer switches are notoriously bulky. For solar PV distribution boxes where space is at an absolute premium, a compact DIN rail transfer switch is the only logical choice.
Modern ATS units, like our SATS Series, are engineered specifically for tight spaces. They feature a Compact Design that snaps effortlessly onto a standard 35mm DIN rail, saving up to 50% of the space inside your combiner box compared to traditional wall-mounted models.
Why Switching Speed (≤0.02s) is Crucial for Solar Inverters
Not all transfer switches are created equal. Many standard ATS units take 1 to 2 seconds to switch between grid and solar power.
For a solar inverter, a 2-second delay is an eternity. This delay can cause your inverter to drop synchronization, throw an error code, or force a complete system reboot—disrupting power to your sensitive electronics and servers.
To maintain a truly seamless backup power supply, you need a Fast Switch ATS. High-performance models like the SATS-G Series boast a lightning-fast transfer time of ≤0.02s (20 milliseconds). This PC-level switching speed ensures your computers, routers, and solar inverters never even register the power grid shifting.
Upgrade Your Solar Installations with Compact SATS Transfer Switches
Are you a solar contractor, electrical wholesaler, or facility manager tired of dealing with bulky, slow, and unreliable transfer switches? It is time to upgrade your PV combiner boxes with the SATS Series Dual Power Automatic Transfer Switch.
Designed with solar applications in mind, our ATS line offers:
- Perfect Sizing: Available in standard 63A, 100A, and 125A ratings in both 2P, 3P, and 4P configurations.
- 35mm DIN Rail Ready: The ultimate compact design for effortless installation inside any PV enclosure.
- Seamless Transfer: Unmatched ≤0.02s to ≤0.05s switching speeds.
- Dry Contact Integration: Easily connect external indicator lights or integrate the ATS into your smart solar monitoring system via the built-in dry contacts.
Stop compromising on space and speed. Contact our engineering team today for a bulk quote on CE and ISO-certified DIN-rail ATS units tailored for your next solar project.
Frequently Asked Questions (FAQ)
Q: Can I put a transfer switch inside a PV combiner box? A: Yes, provided you use a compact, DIN rail-mounted ATS (like the SATS-G series) that fits the enclosure’s dimensions and is properly rated for the heat and continuous load of the solar system.
Q: What is the 125% rule for solar ATS sizing? A: The National Electrical Code (NEC) requires that transfer switches and overcurrent protection devices handling continuous loads (like a solar inverter running for hours) must be sized at 125% of the maximum continuous current to prevent overheating.
Q: Does my ATS need to switch the neutral wire in a solar system? A: In most off-grid and hybrid solar installations, switching the neutral wire is highly recommended (and often required by local codes) to maintain proper isolation and grounding. This is why 2P (for single-phase) and 4P (for three-phase) transfer switches are the standard choice over 1P or 3P models.
