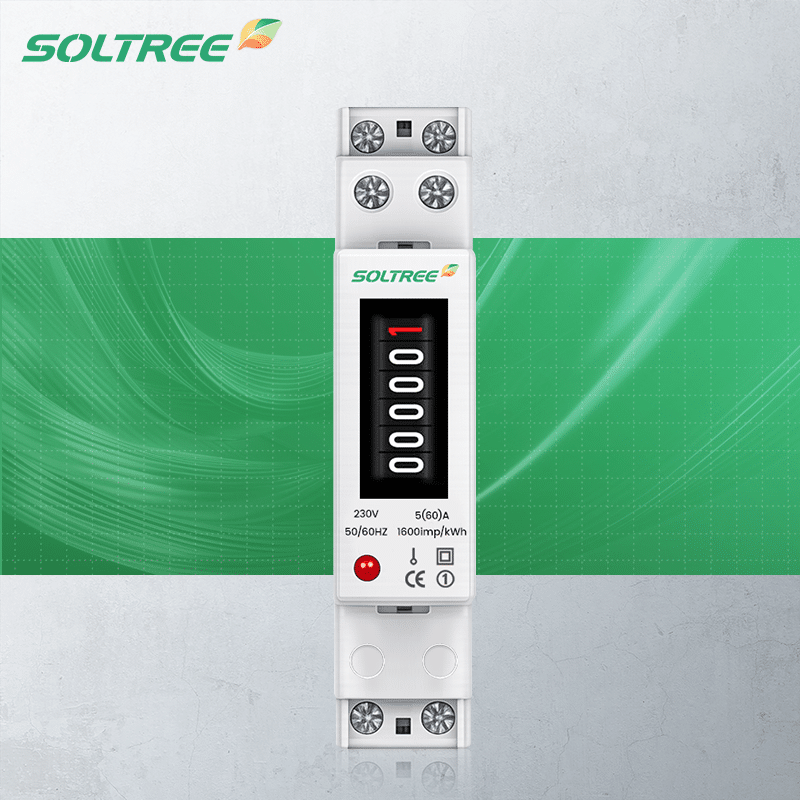

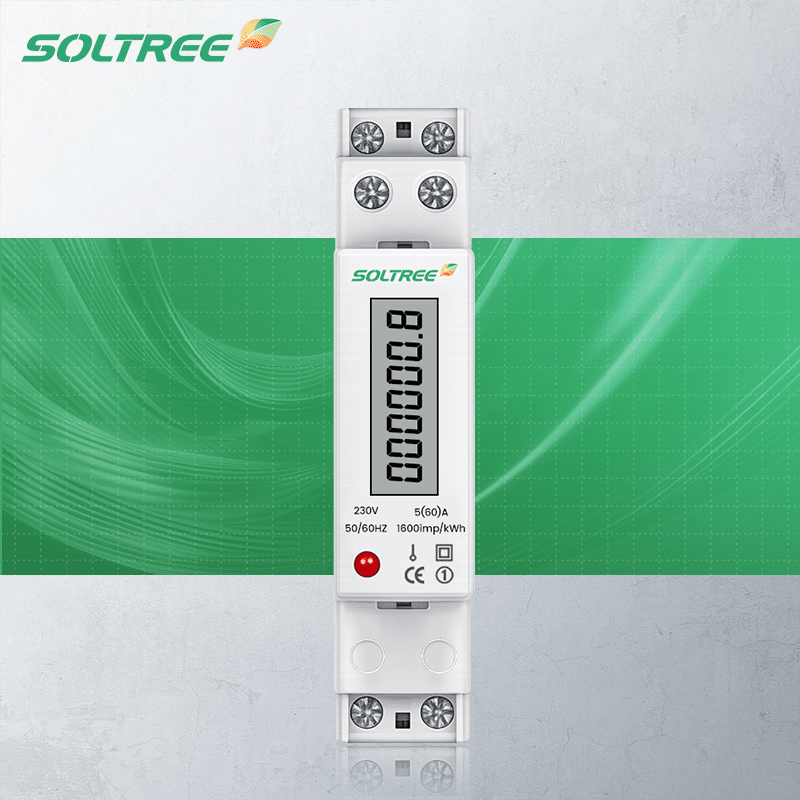

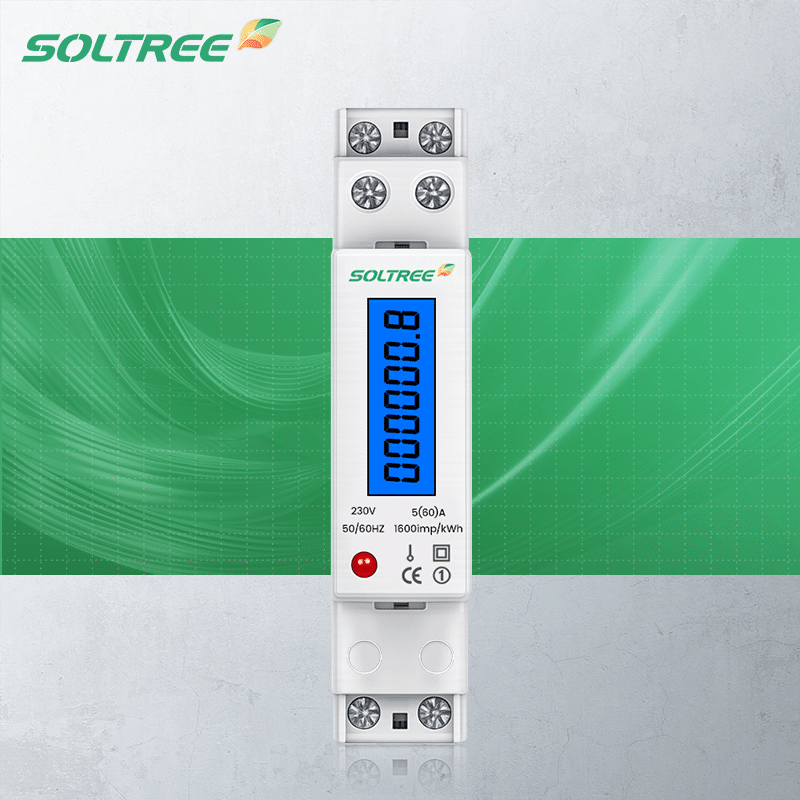

DIN Rail Single Phase Energy Meter DDS6682(LCD & Mechanical Display Options)

1. Product Overview

Designed for modern electrical distribution systems, this highly compact DIN Rail Single Phase Energy Meter offers precise and reliable active energy (kWh) measurement. Built with premium flame-retardant materials, it ensures ultimate safety in any environment. To meet diverse project requirements, it is available in two classic variations: a clear LCD Liquid Crystal Display and a highly durable Mechanical Register. Featuring standard 35mm DIN-rail assembly and automatic data storage upon power loss, it is the perfect space-saving solution for residential, commercial, and industrial sub-metering applications.

2. Five Key Features

• Versatile Display Options: Choose between the modern, easy-to-read LCD screen or the ultra-durable mechanical rolling register based on your specific grid conditions and project needs.

• Automatic Power-Off Memory: (For LCD models) Equipped with smart non-volatile memory chips, ensuring your accumulated energy data is safely stored and never lost during unexpected power outages.

• Premium Flame-Retardant Housing: Manufactured using high-quality, flame-retardant PC/ABS materials, providing superior heat resistance, enhanced safety, and a longer operational lifespan.

• Standard DIN Rail Assembly: Features a universal modular design that snaps effortlessly onto any standard 35mm DIN rail, significantly reducing installation time and saving valuable panel space.

• Clear & Simple Wiring: Designed with intuitive L-in, N-in / L-out, N-out terminals (as shown in the wiring diagram), making installation straightforward for electricians and panel builders.

3. Technical Specifications

4. Application Scenarios

• Rental Properties & Dormitories: Accurately track individual tenant electricity usage for fair and dispute-free billing.

• Commercial Office Sub-Metering: Monitor power consumption across different departments or retail units within a building.

• Space-Restricted Distribution Boxes: Its compact modular design is perfect for retrofitting old panels or densely packed electrical cabinets.

5. FAQ (Frequently Asked Questions)

Q1: Will the LCD version lose its energy reading if the power goes out?

A: Absolutely not. The LCD model is equipped with an “Automatic Storage Memory” feature. Even during prolonged power outages, your accumulated energy (kWh) data is securely saved in the internal memory and will instantly reappear once the power is restored.

Q2: Which display type should I choose: LCD or Mechanical?

A: If you need a modern look with highly visible digital numbers, the LCD version is excellent. If you are installing the meter in an area with extreme voltage fluctuations, frequent lightning, or extreme temperatures, the Mechanical register is highly recommended for its rugged durability.

Q3: Is the housing safe and fire-resistant?

A: Yes. The outer casing is made from strictly selected flame-retardant materials. It is designed to self-extinguish and withstand high temperatures, significantly reducing the risk of fire hazards in your distribution panel.

Q4: How easy is it to install this meter?

A: Installation is very quick. It uses a standard “DIN Rail Assemble” mechanism, meaning it easily clips onto any standard 35mm DIN rail. The wiring is also clearly marked (L/N in, L/N out) for straightforward connection.
