When a power outage strikes, your automatic transfer switch (ATS) is supposed to seamlessly shift your electrical load to a backup generator. But what happens if the automated system fails, the controller board malfunctions, or you need to perform routine maintenance?
You will need to know how to manually switch an automatic transfer switch.
While bypassing the automated system might seem intimidating, using the manual override on an automatic transfer switch is perfectly safe—if you follow the correct procedures. In this guide, we will walk you through the critical safety warnings and the step-by-step process of manually operating your ATS.
When Do You Actually Need the Manual Override?
You should only rely on the ATS manual operation in a few specific scenarios:
- Controller Failure: A power surge has damaged the ATS control board, rendering the automatic sensors useless.
- Routine Maintenance: Electricians need to safely test the mechanical linkage of the transfer switch.
- Emergency Bypass: You need to force the transfer switch to utility power or generator power immediately due to an automated glitch.
🛑 CRITICAL SAFETY WARNING: Read Before You Touch
DANGER: Electricity is unforgiving. Never attempt to manually switch a standard automatic transfer switch while under a heavy electrical load unless the manufacturer explicitly states it is a “Load Break” rated switch.
Switching under load can cause a severe arc flash, which can melt the internal contacts (sparking) and cause catastrophic injury or fire. Always disconnect the main power inputs before using the manual handle.
Step-by-Step: How to Manually Switch Your ATS
To safely use the manual override, follow these sequential steps.
Step 1: Disconnect the Main Load
Before touching the transfer switch handle, go to your main electrical panel and turn off the main breaker. Then, go to your backup generator and turn off its main output breaker. Verify that no live current is flowing into the ATS.
Step 2: Switch the Selector to “Manual” Mode
Most modern transfer switches feature a dedicated mode selector. Look for a small switch or button labeled “Auto / Manual” on the front panel of the ATS.
- Toggle or press this switch to the “Manual” position. This electronically locks out the automatic controller, ensuring the ATS doesn’t try to switch automatically while your hands are on the mechanism.

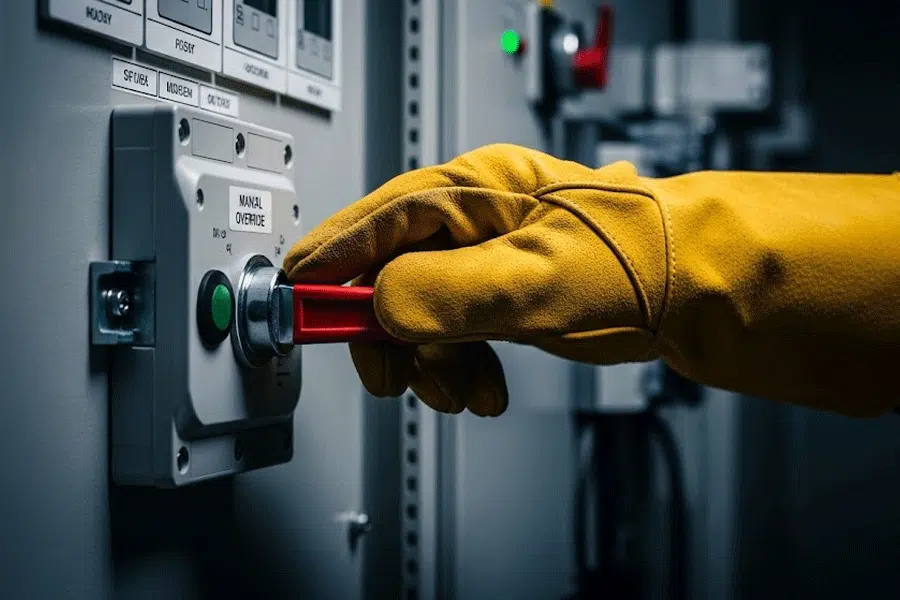

Step 3: Turn the Manual Handle
Locate the primary directional handle on the ATS. On high-quality dual power transfer switches, this is usually a prominent, ergonomically designed handle (often colored blue or red for high visibility).
- Firmly grasp the insulated manual handle.
- Rotate the handle towards your desired power source. The faceplate will typically indicate “N” (Normal/Utility Power) and “R” (Reserve/Emergency Power).
- You should feel a solid mechanical “click” as the internal contacts lock into the new position.
Step 4: Restore Power Safely
Once the mechanical switch is securely in the correct position (N or R), step back. First, turn on the breaker for the power source you selected (Grid or Generator). Then, turn on the main breaker for your building’s load.
Why is Your Transfer Switch Handle Hard to Turn?
Did you try to use the manual override, but the transfer switch handle feels stuck or extremely hard to turn? Do not force it.
A jammed handle usually means the internal copper contacts have melted and welded together due to electrical arcing from previous power surges. Forcing the handle can shatter the internal mechanism. If your ATS is mechanically binding, it is broken and must be replaced immediately.
Upgrade to a Safer, Jam-Free DIN-Rail ATS
If your current transfer switch is old, clunky, or prone to contact welding, it is time to upgrade to a system designed with modern safety standards.
For contractors, wholesalers, and facility managers, the SATS Series Dual Power Automatic Transfer Switch offers unparalleled reliability and ease of use:
- Silver Alloy Contacts: Unlike cheap copper contacts that weld together, our ATS uses premium silver alloy contacts to prevent arcing and mechanical jamming.
- Ergonomic Manual Override: Designed with a highly visible, easy-to-turn directional handle and a dedicated Auto/Manual safety lock button.
- Compact 35mm DIN Rail Mount: Upgrade your electrical panel effortlessly. The SATS series features a compact design that clicks perfectly onto standard 35mm DIN rails.
- Lightning-Fast Switching: Enjoy an incredibly fast switch time of ≤0.02s to ≤0.05s, ensuring your sensitive electronics never drop power.
Need a reliable compact ATS supplier? Upgrade your inventory or facility today. Contact us for bulk pricing on our CE and ISO-certified DIN-rail automatic transfer switches.
Frequently Asked Questions (FAQ)
Q: Is it safe to switch an ATS under load? A: No. Unless specifically rated as a “load break” switch, you must always disconnect the main power and generator breakers before manually operating the transfer switch to prevent arc flashes and contact damage.
Q: How do I reset my ATS after a manual override? A: To reset, ensure power sources are stable. Use the manual handle to switch the unit back to the “Normal (N)” position if grid power is restored. Then, flip the small selector button from “Manual” back to “Auto.” The controller will resume monitoring.
Q: Which way do I turn the transfer switch handle? A: It depends on the manufacturer, but clear indicators are usually printed on the faceplate. Typically, rotating towards “N” connects to utility power, while rotating towards “R” connects to the generator. Always follow the directional arrows on your specific device.
